The Quantum Centrifugal Pump

Dedicated centrifuge pump technology for ECLS application in the I.C.U. and during transport.

Spectrum Medical’s next generation Quantum CP22 and CP20 Centrifugal Pump technology provide exceptional levels of optimised fluid performance along with significantly reduced prime volumes. The utilisation of a single sapphire bearing, and patented hydro-dynamic balancing technology ensures levitation at low RPMs leading to significantly reduced heat generation and haemolysis when compared to current competition.

Another world first is the integration of Spectrum Medical’s advanced pressure and temperature measurement technology within the CP22 and CP20 range of Centrifugal Pumps. In-line pressure and temperature measurement of both the arterial and venous lines can now be accomplished without compromising the safety of the ECLS circuit.

CP22 (Order Code: CP22V-VT)

Integrated Centrifugal Pump and Heat Exchanger

To support the introduction of Spectrum Medical’s new ECLS heater solution and to minimise circuit complexity Spectrum Medical has integrated a stainless-steel venous heat exchanger and the Quantum centrifugal pump into a single disposable assembly.

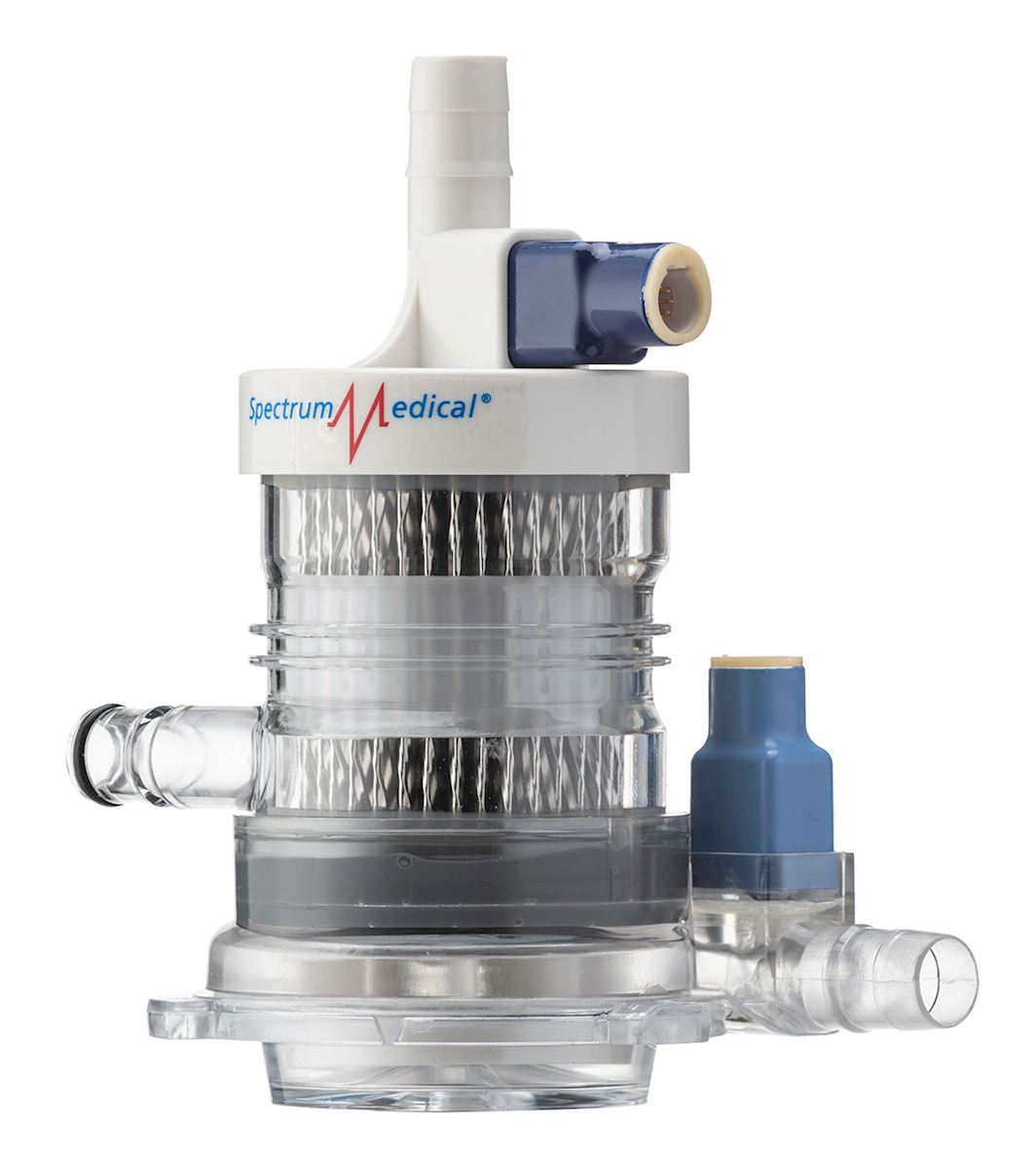

PH33 (Order Code: PH33V-VT)

Product Range

Description Code Ports Performance
Centrifugal Pump CP22 3/8 7 L/min - 5000 rpm - 550 mmHg
Centrifugal Pump CP20 1/4 3 L/min - 5000 rpm - 550 mmHg
Centrifugal Pump with integrated Heat Exchanger PH33 3/8 7 L/min - 5000 rpm - 550 mmHg
Centrifugal Pump with integrated Heat Exchanger PH30 1/4 3 L/min - 5000 rpm - 550 mmHg

All solutions are coated with Spectrum Medical’s cross linked bio compatibility PC1036. Superior adhesion qualities, elasticity and surface smoothness maximises antithrombotic performance throughout the life of the product.


The Heat Exchanger is not yet available within the U.S. markets. Keep checking our website for updates on our regulatory status.
